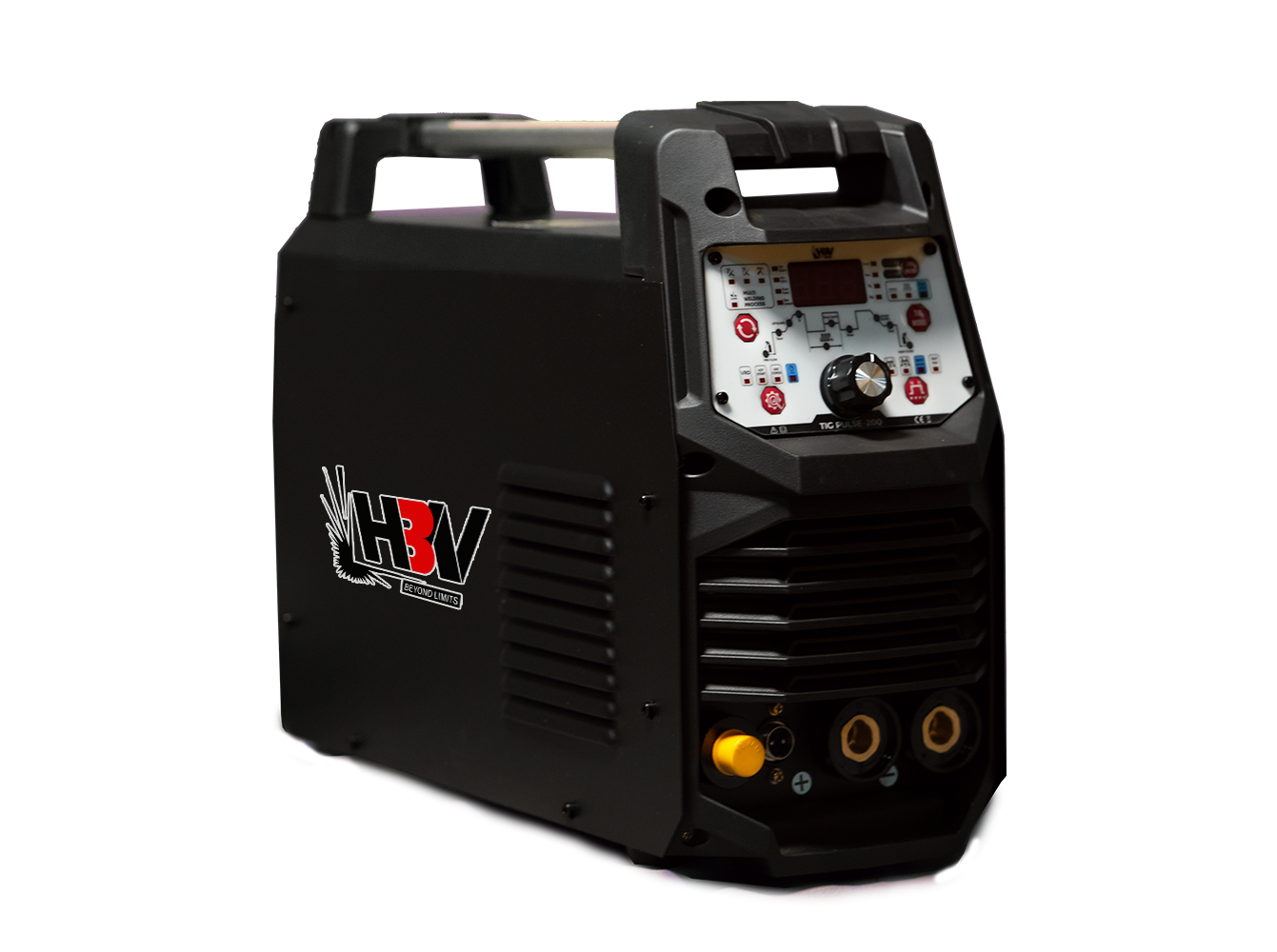

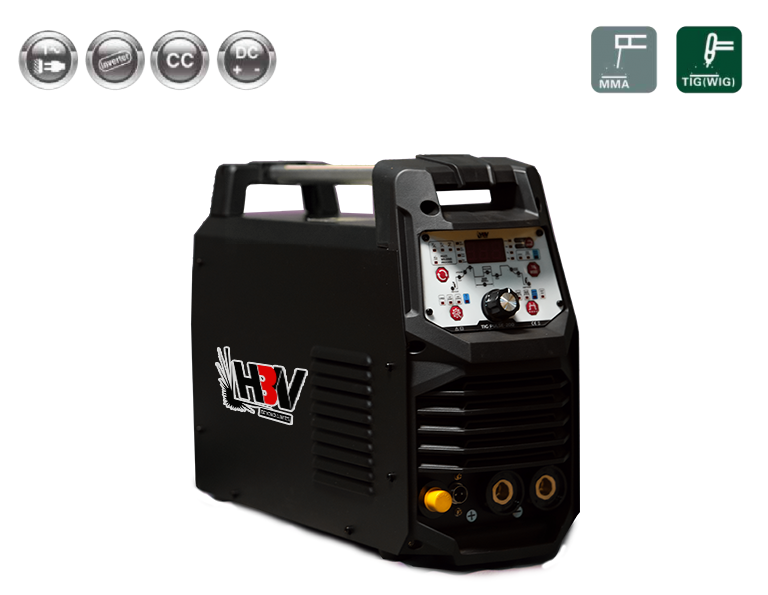

PULSE TIG 200
| Input Voltage (V) | 1 Phase 230V 50/60Hz |
|---|---|
| Input Current (A) | 24A |
| Input Power (kW) | 6.1 kW |
| Duty Cycle (%) | 100% @ 155A | (lower duty cycle implied for 200A peak) |
| No-load Voltage (OCV) | 63V |
| Output Current Range (A) | TIG: 20–200A | STICK (MMA): 20–160A |
| Welding Process | PULSE TIG / TIG / STICK (MMA) / 2T/4T / SPOT |
| Electrode Diameter Max | Ø 4.0 mm |
| Max Welding Thickness (recommended) | 4.0 mm |
| Features | Pulse TIG, 2T/4T Control, Spot Welding |
| Machine Size (cm) | 41 × 18 × 33 cm |
| Weight (Kg) | 8.0 Kg (Net Weight) |
