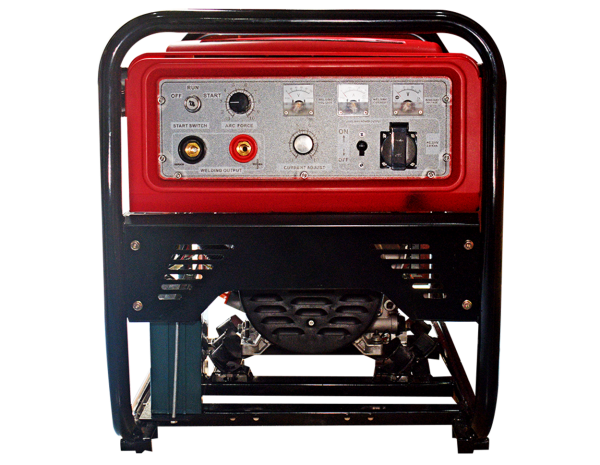

SMA 230D
| DC Welding Current | 230A |
|---|---|
| DC Welding Voltage | 27.2V |
| Non-Load Voltage | 60-70V |
| Welding Current Range | 40-220A |
| Duty Cycle at rated amps available | 60% |
| Welding Process | MMA/TIG |
| Welding Rod Diameter | 1.6-5.0mm |
| Work Condition | Continuation |
| Fuel Tan Capacity | 5.5L |
| Fuel Type & Consumption at rated load | 395/kw.h |
| Power rated output (single phase) | AC 3kw |
| Frequency | 50HZ |
| Voltage | 230V |
| Exciting Model | Brush Exciation |
| Power Factor (Φ) | 1.0 |
| Overall L x W x H | 730x550x640mm |
| Shipping N.W/G.W | 90/94kgs |
| Shipping Dimensions | 800/580/690mm |
| Engine Model | Diesel Engine 192FE |
| Engine Borexstroke | 92×75 |
| Start Method | Recoil Start |
| Engine Displacement | 499cc |
| Engine RPM | 3600 |
| Engine Oil Capacity | 0.6L |
