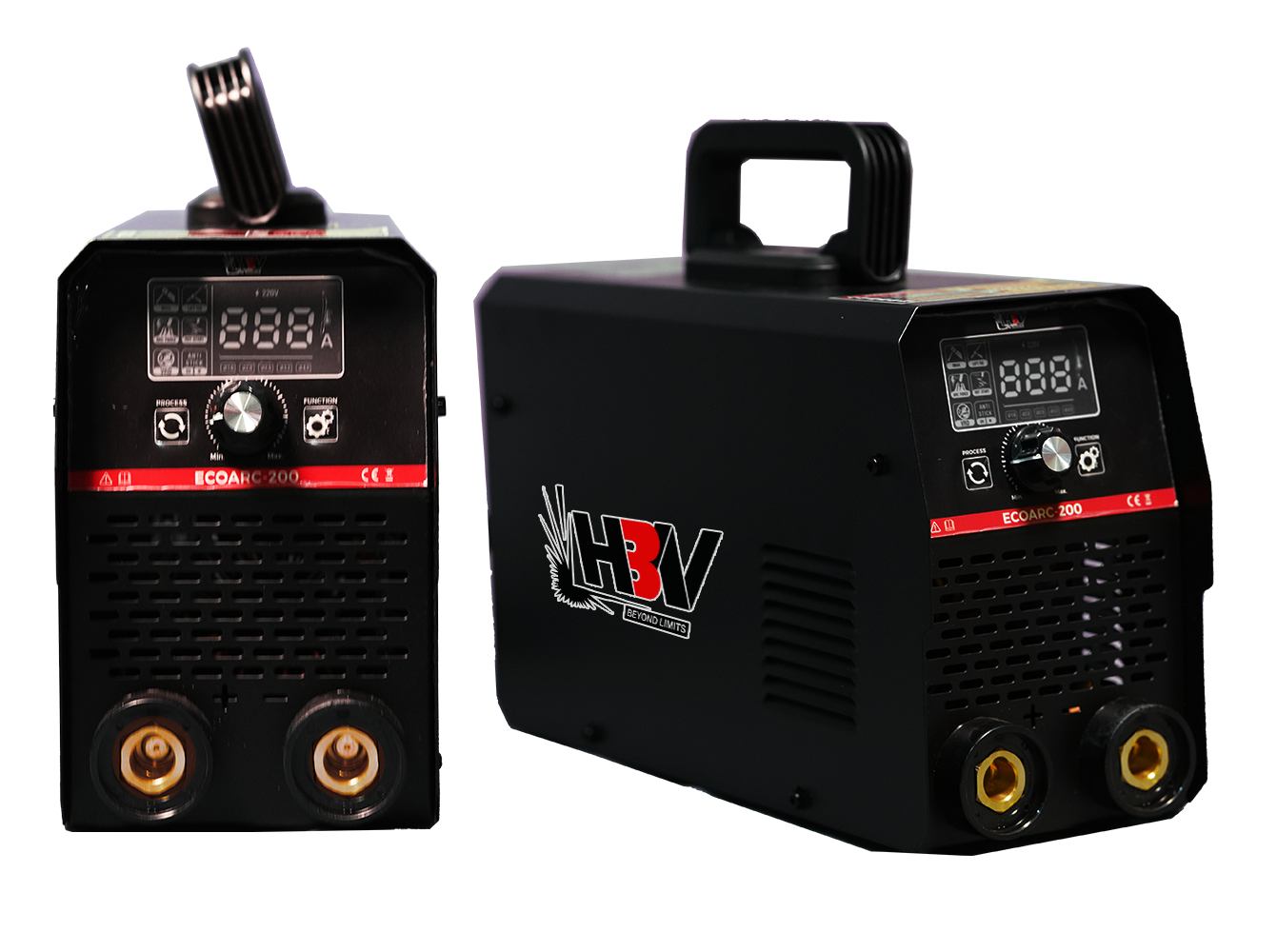

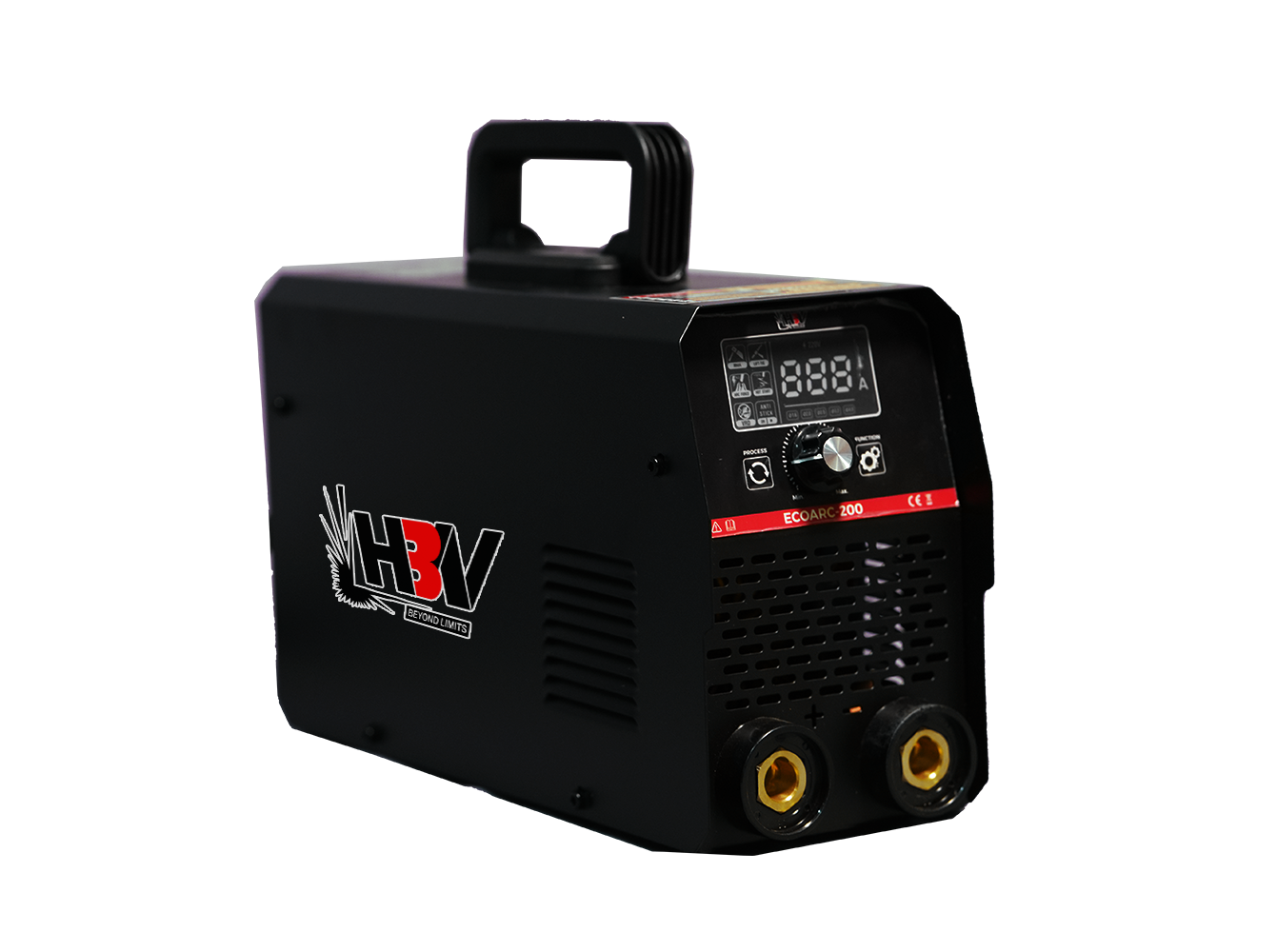

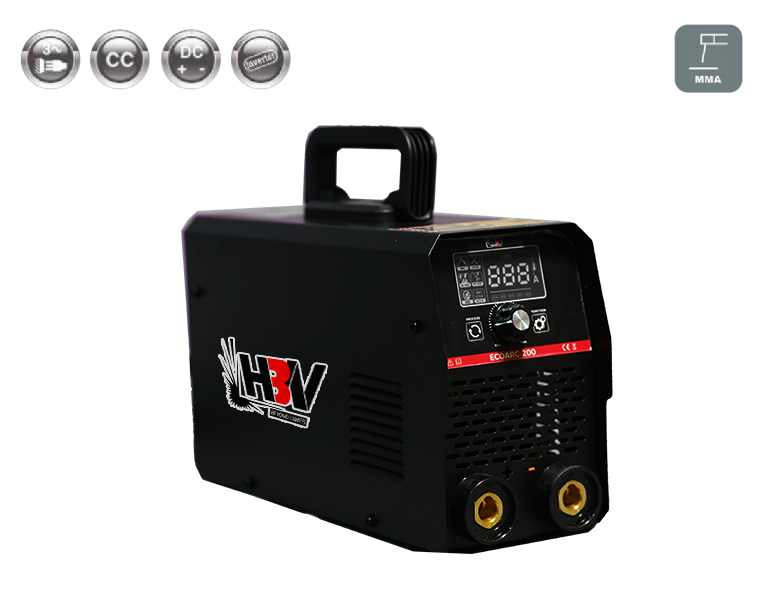

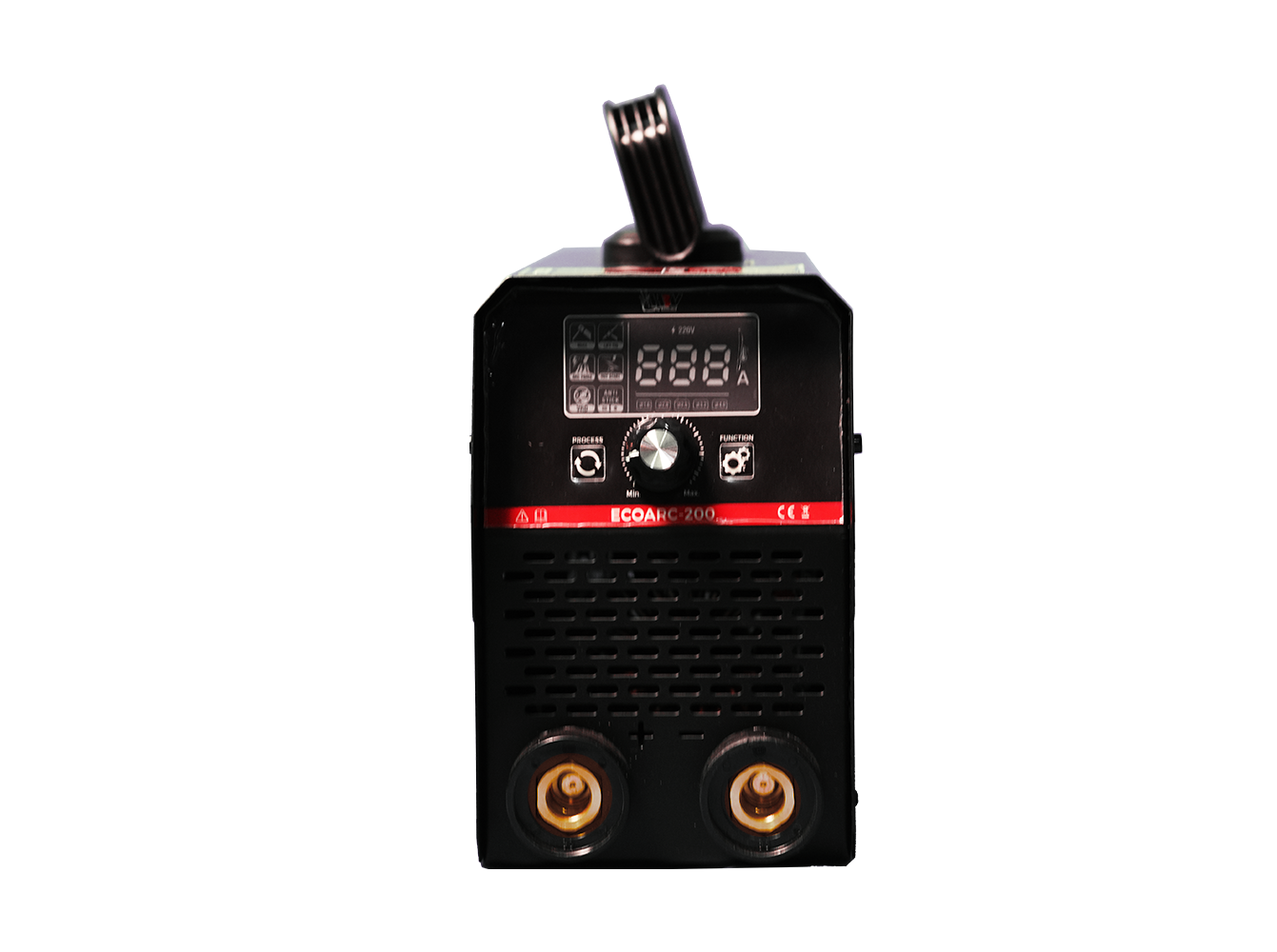

ECOARC 200
| Input Voltage (V) | 1 Phase 230V 50/60Hz (also supports 1 Phase 110V) |
|---|---|
| Input Current (A) | 31.8A @ 230V |
| Input Power (kW) | 7.0 kW |
| Duty Cycle (%) | 60% @ 155A / 100% @ lower current (up to 200A @ reduced duty cycle) |
| No-load Voltage (OCV) | 63V or 80V (CEL) |
| Output Current Range (A) | 20–200A @ 230V (20–100A @ 110V) |
| Electrode Diameter Max | Ø 5.0 mm |
| Max Welding Thickness (recommended) | 6.0 mm |
| Welding Process | STICK (MMA) / LIFT TIG |
| Features | ANTI STICK, HOT START, ARC FORCE |
| Machine Size (cm) | 32 × 14 × 24 cm |
| Weight (Kg) | 4 Kg (Net Weight) |
Product Description
